ET01

We strive to create products that are safe, durable, have the optimal power-to-weight ratio, more power, easier control, and more fun.

Download

Cross-level security guarantee

Download tech specs

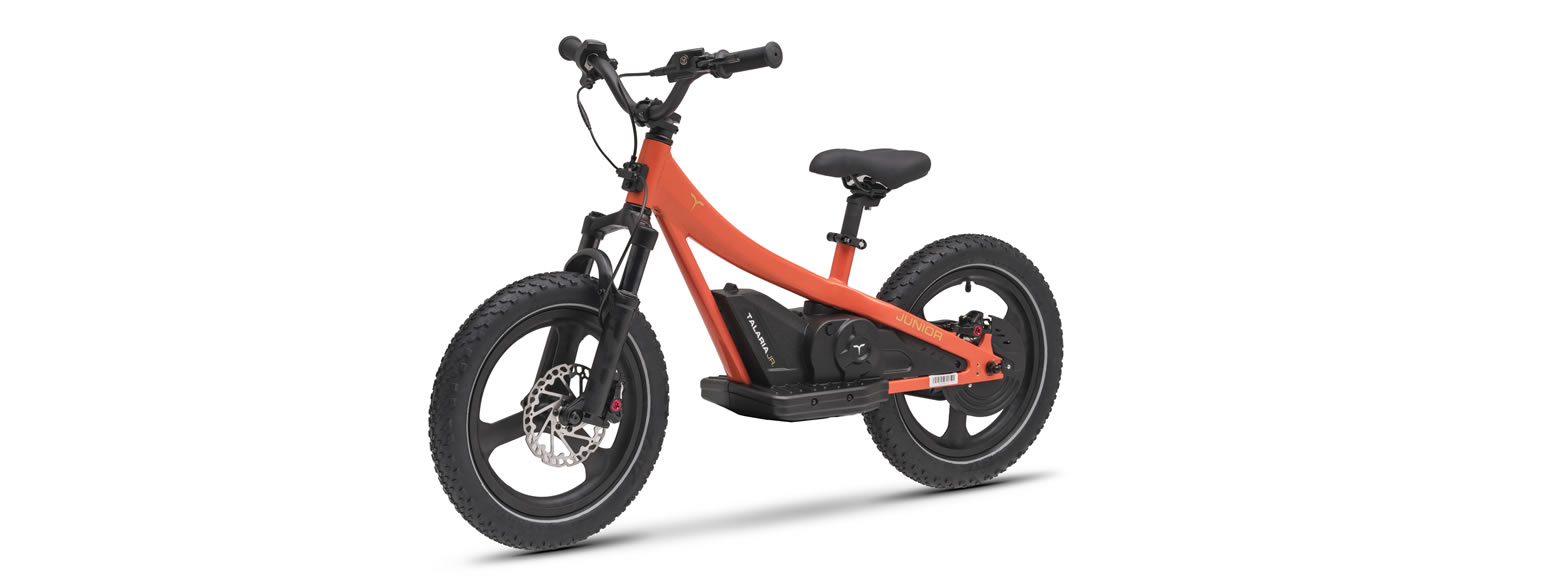

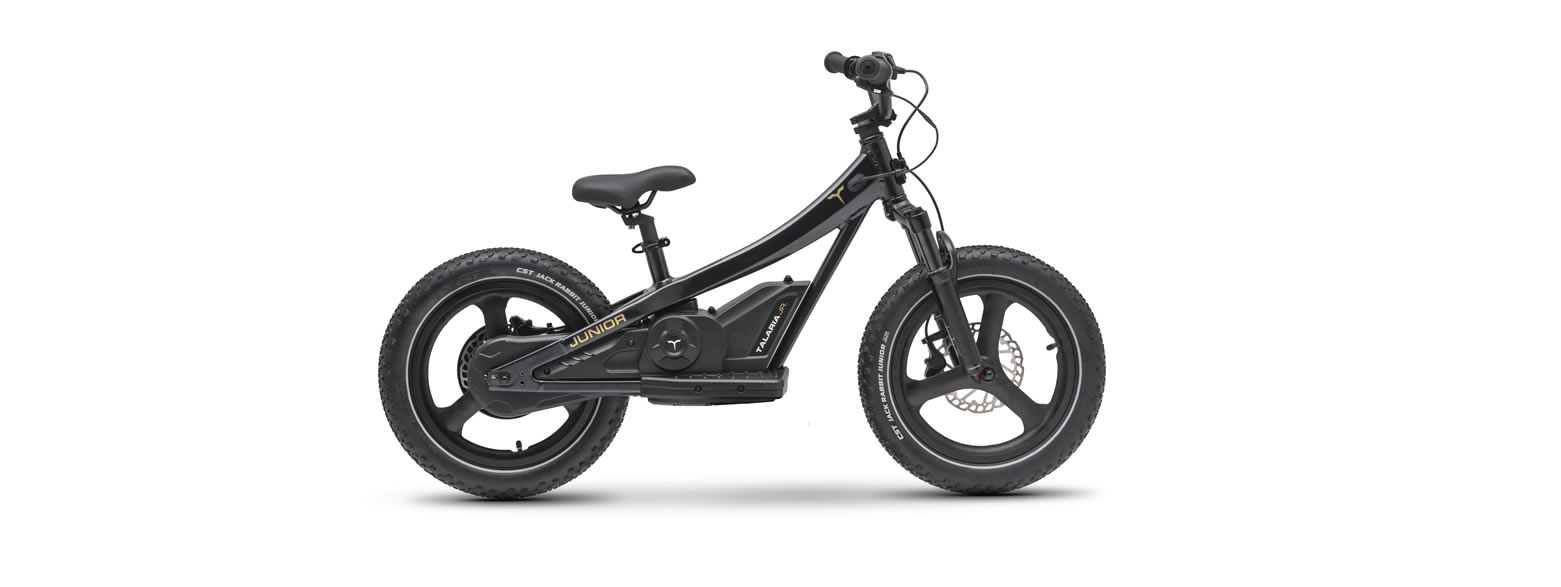

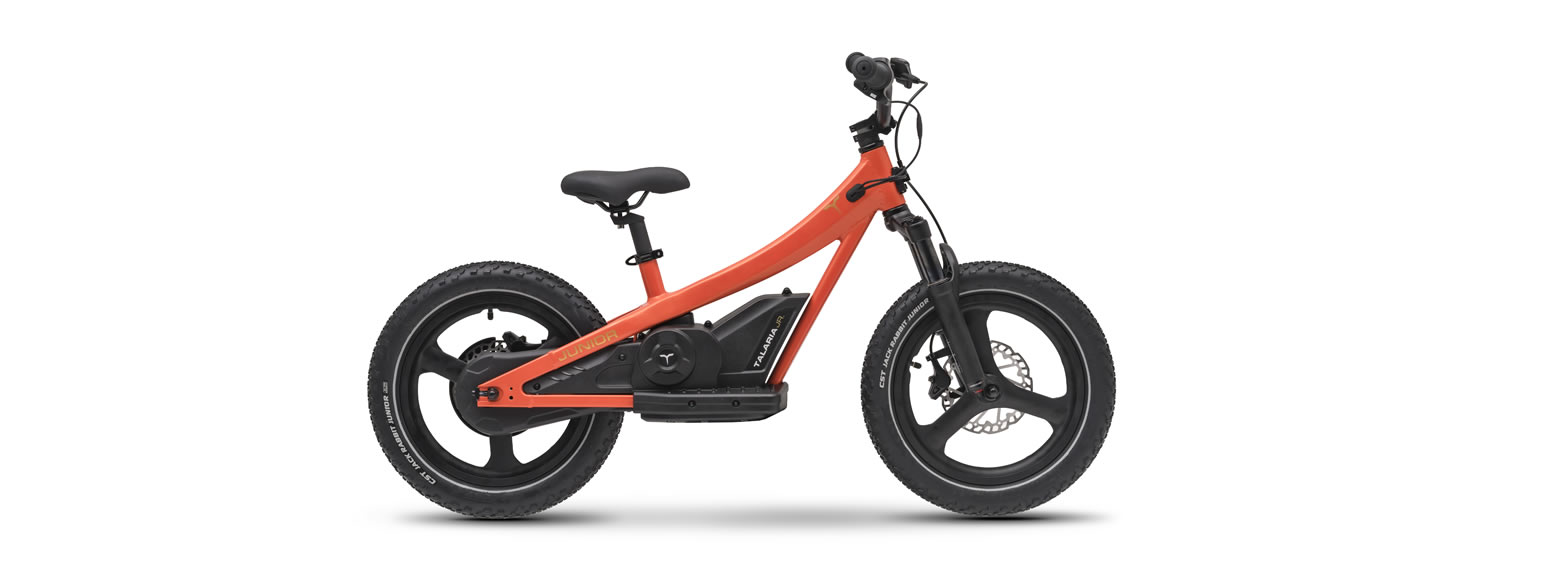

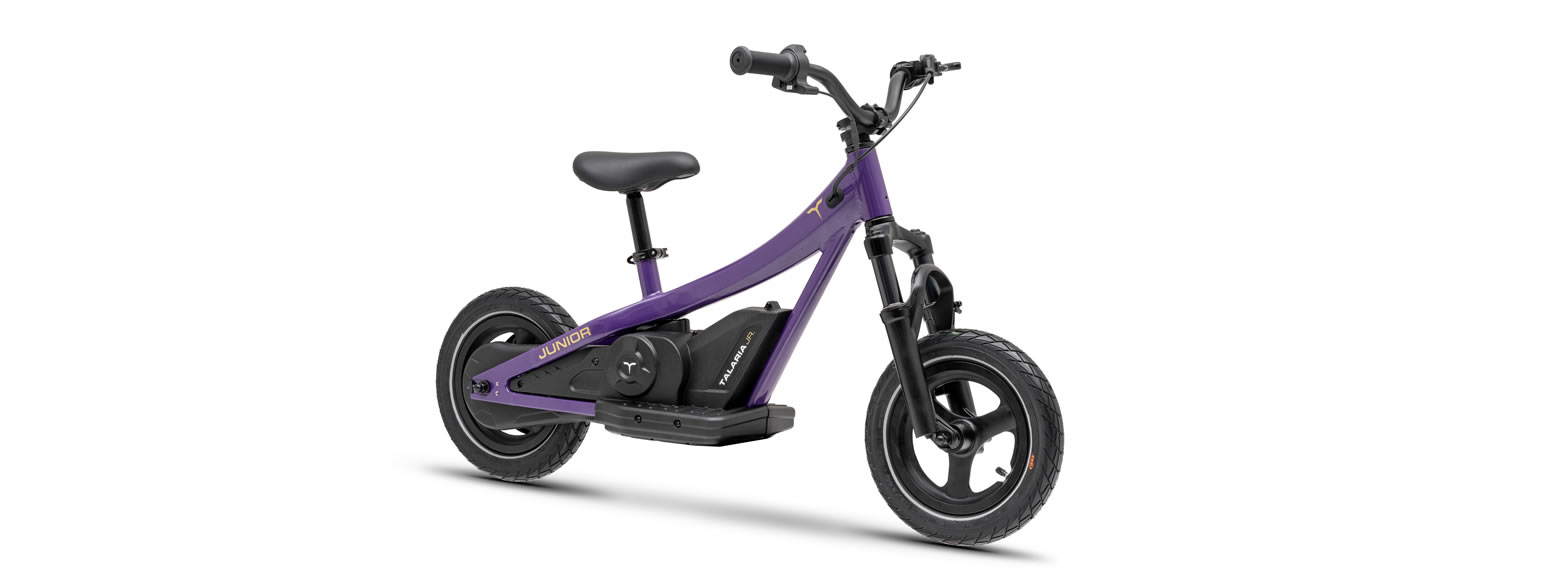

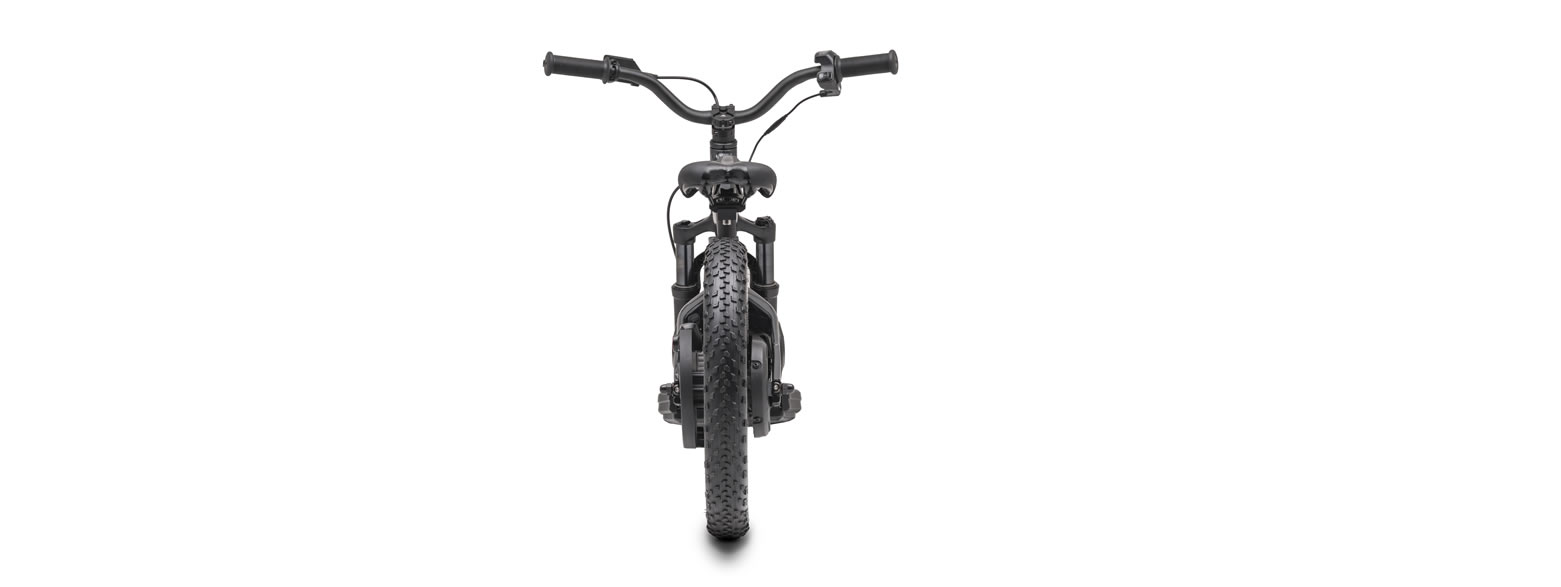

ET01

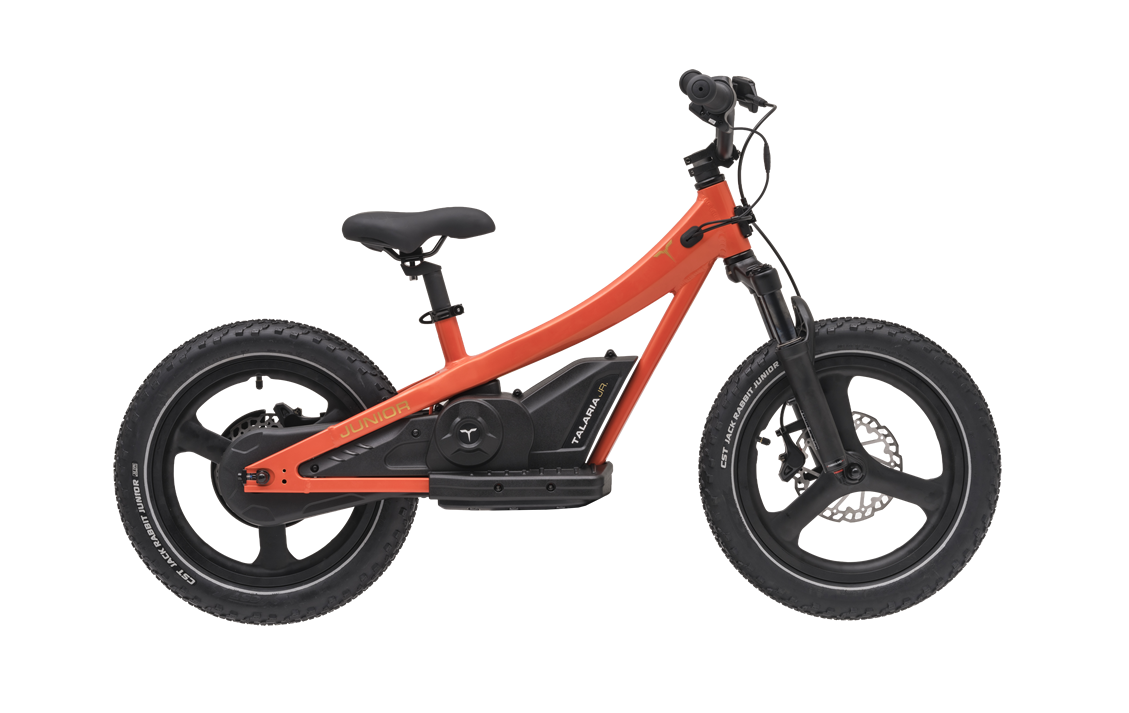

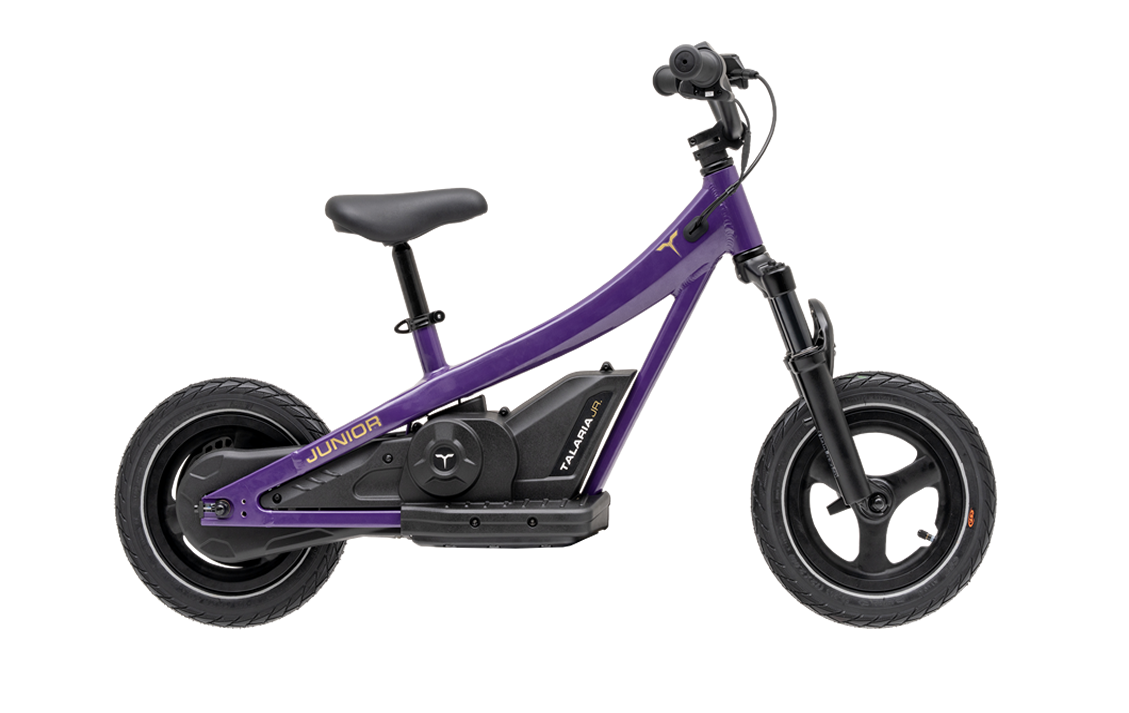

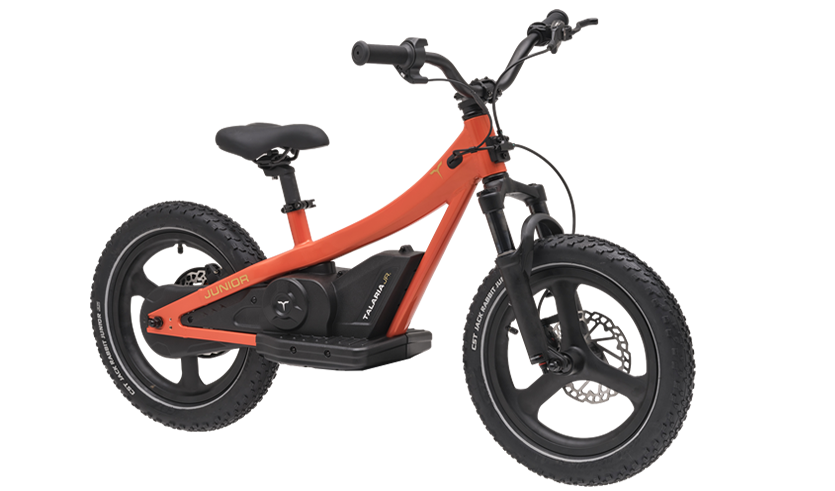

ET01-Premium | ET01- Basic

Specifications
  • POWERTRAIN
  • VEHICLE
  • NORMINAL VOLTAGE

    permanent magnet synchronous motor

  • Charging Time

    1.4h | 2.5h

  • PEAK POWER

    360W | 180W

  • PEAK TORQUE

    720W | 360W

  • TORQUE ON REAR WHEEL

    50N.m

  • CLIMB CAPABILITY

    10%

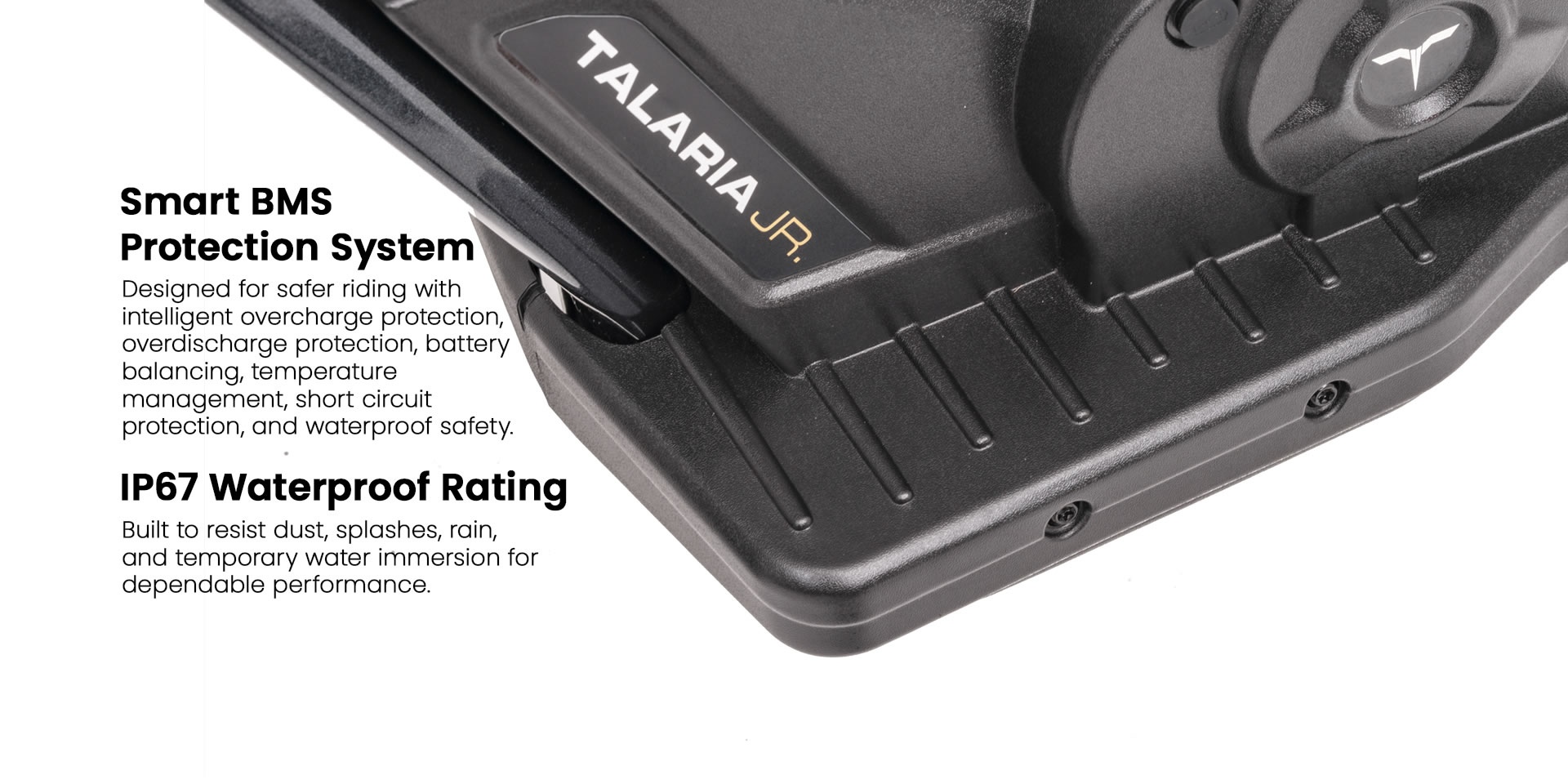

  • BATTERY PACK

    10AH | 5AH

  • RIDING MODES

    ECO/SPORT

  • CHASISS MATERIAL

    wrought aluminum6061

  • CHASISS PROCESS METHOD

    /

  • HEADLIGHT

    /

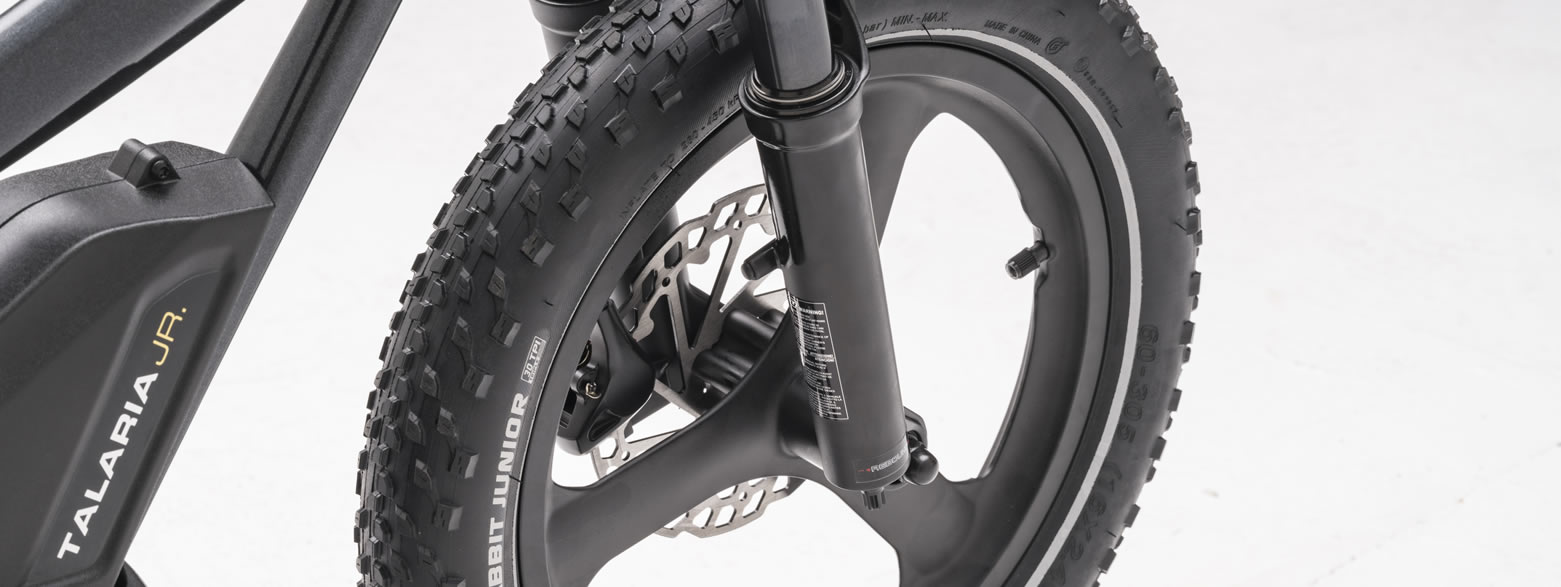

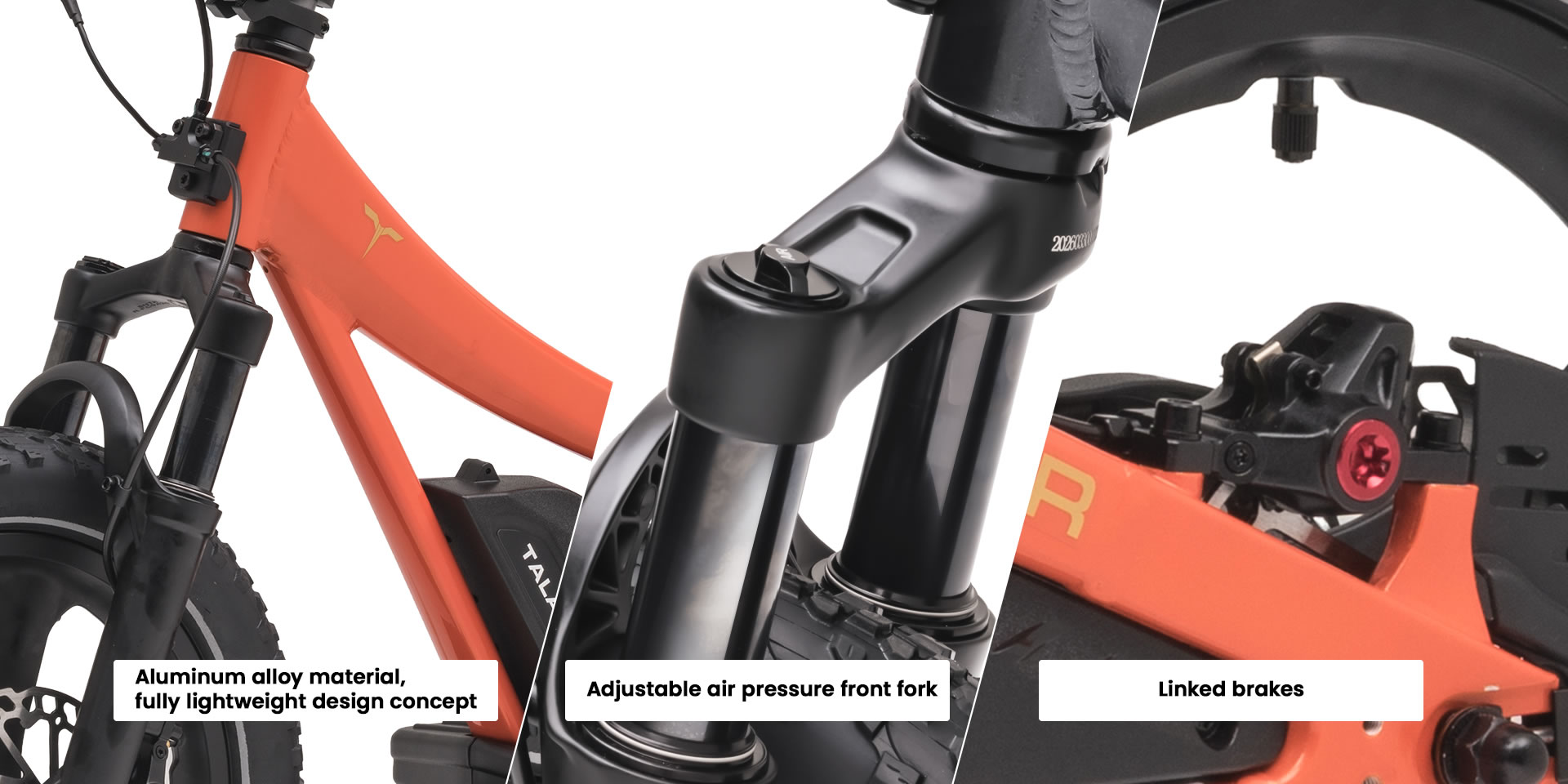

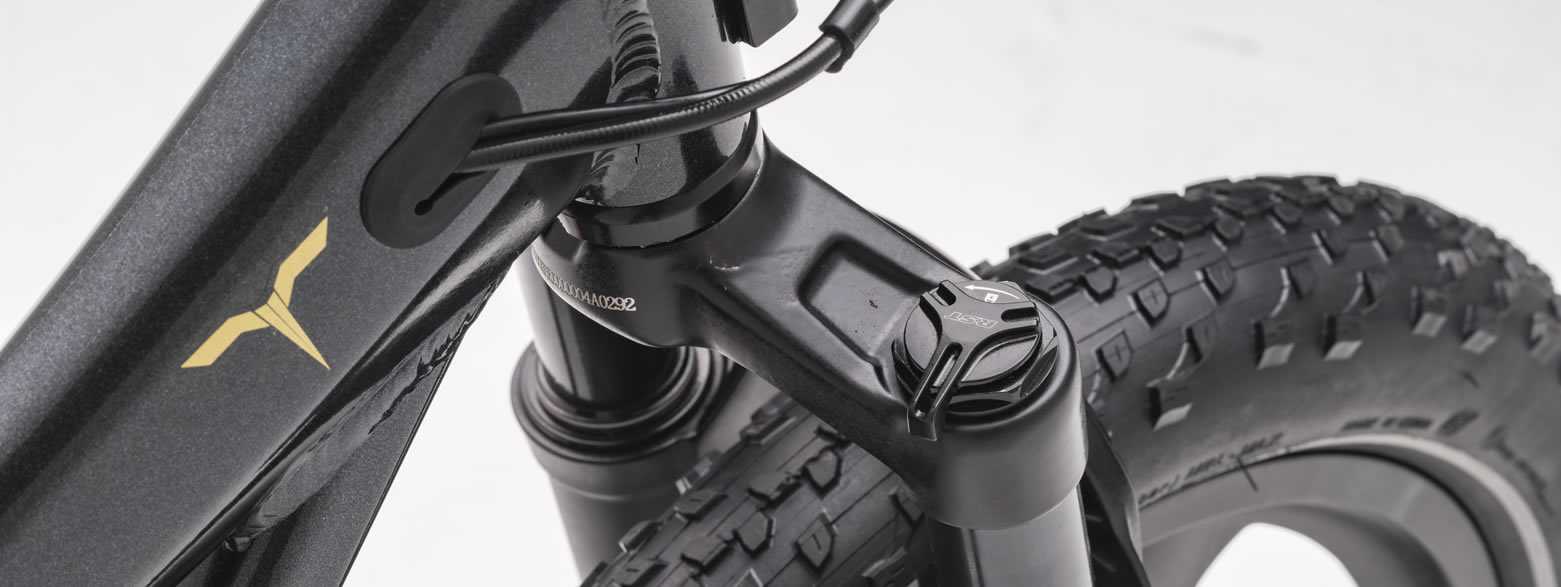

  • FRONT FORK

    Air inverted front fork | Oil‑Spring Upright Front Fork

  • REAR ABSORBER

    /

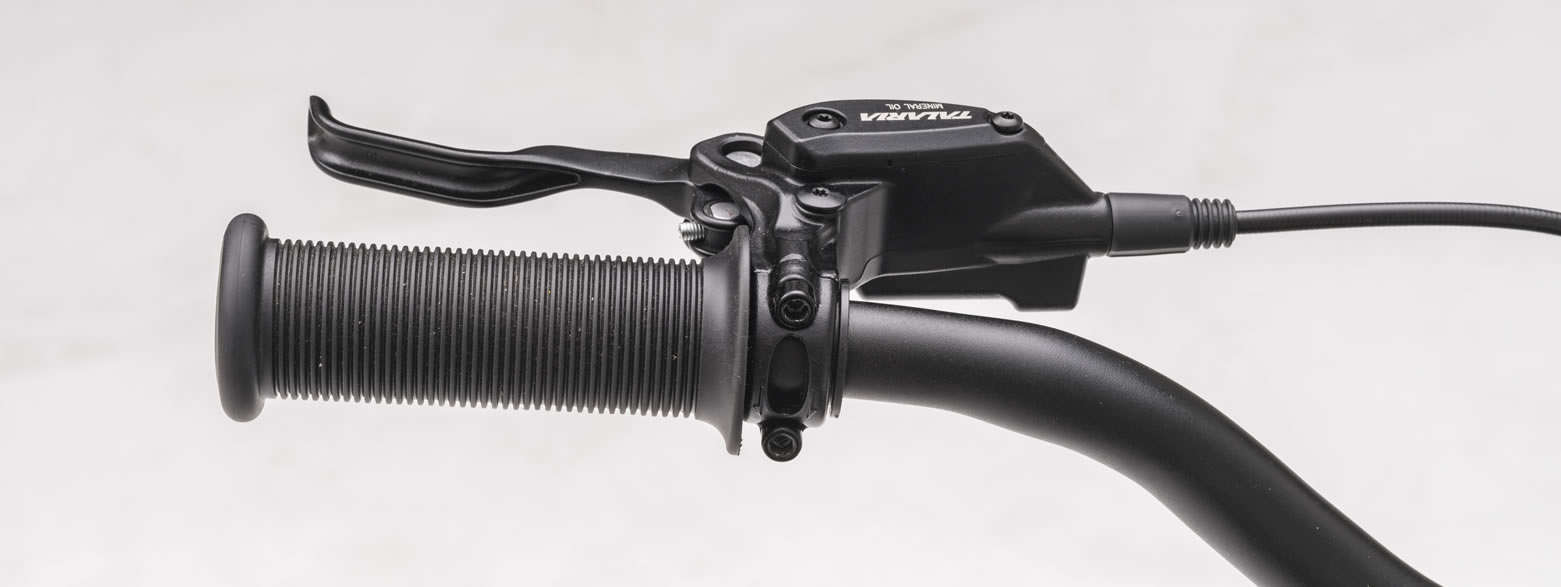

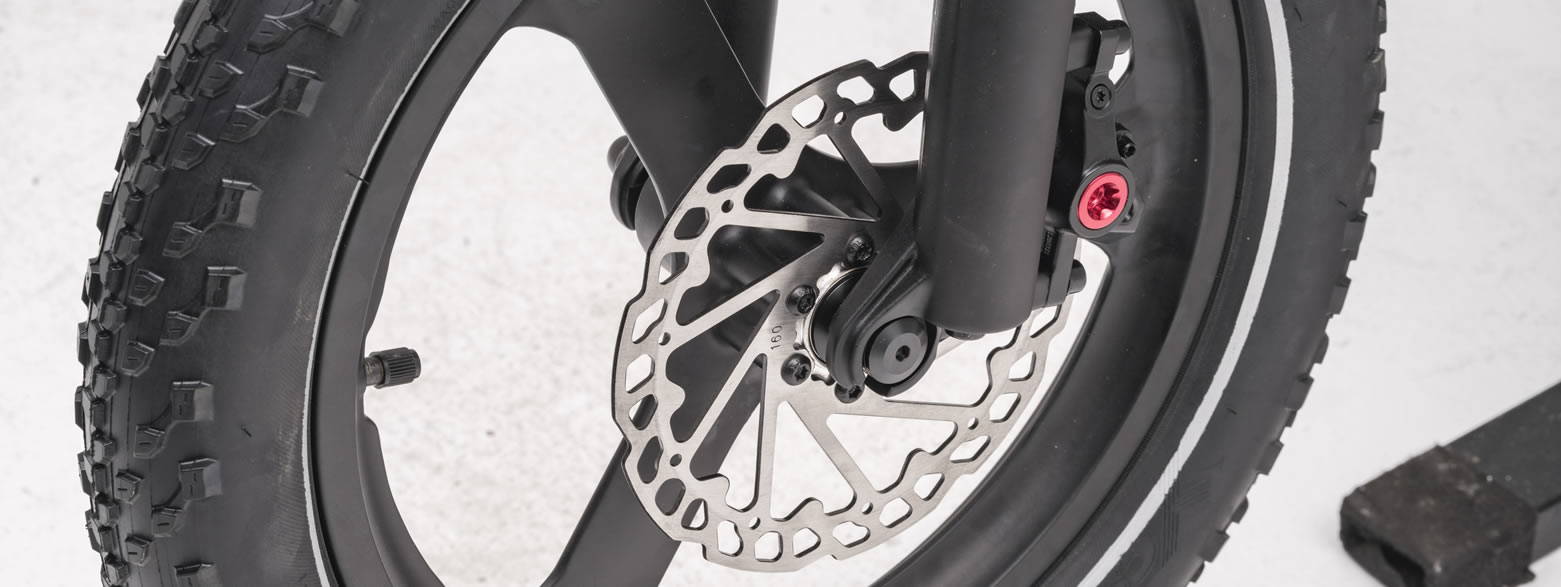

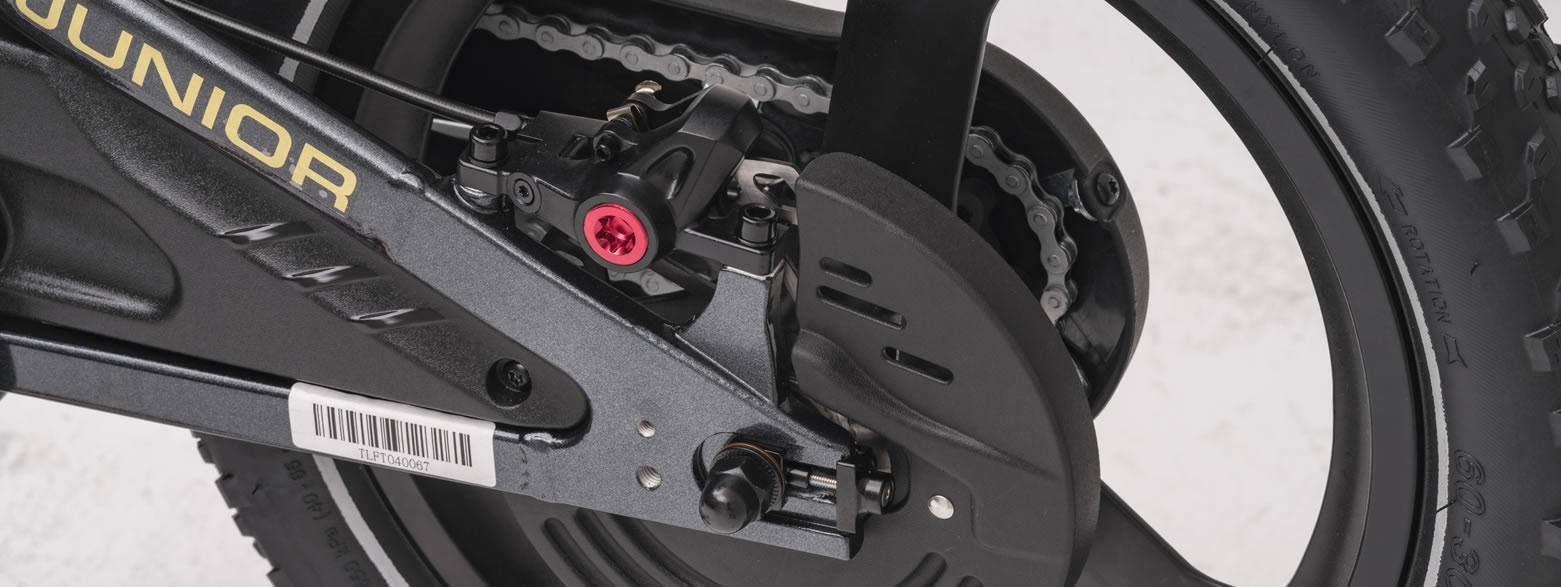

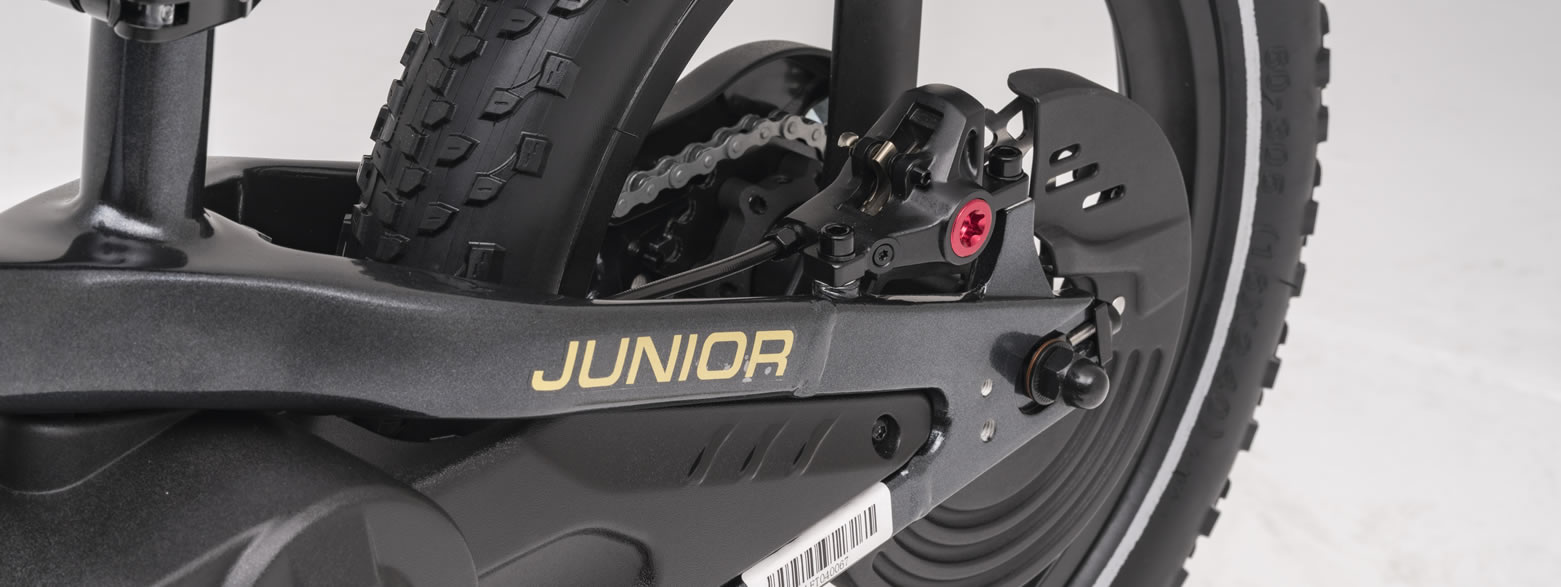

  • BRAKE

    Front and rear disc brakes are linked together | rear disc

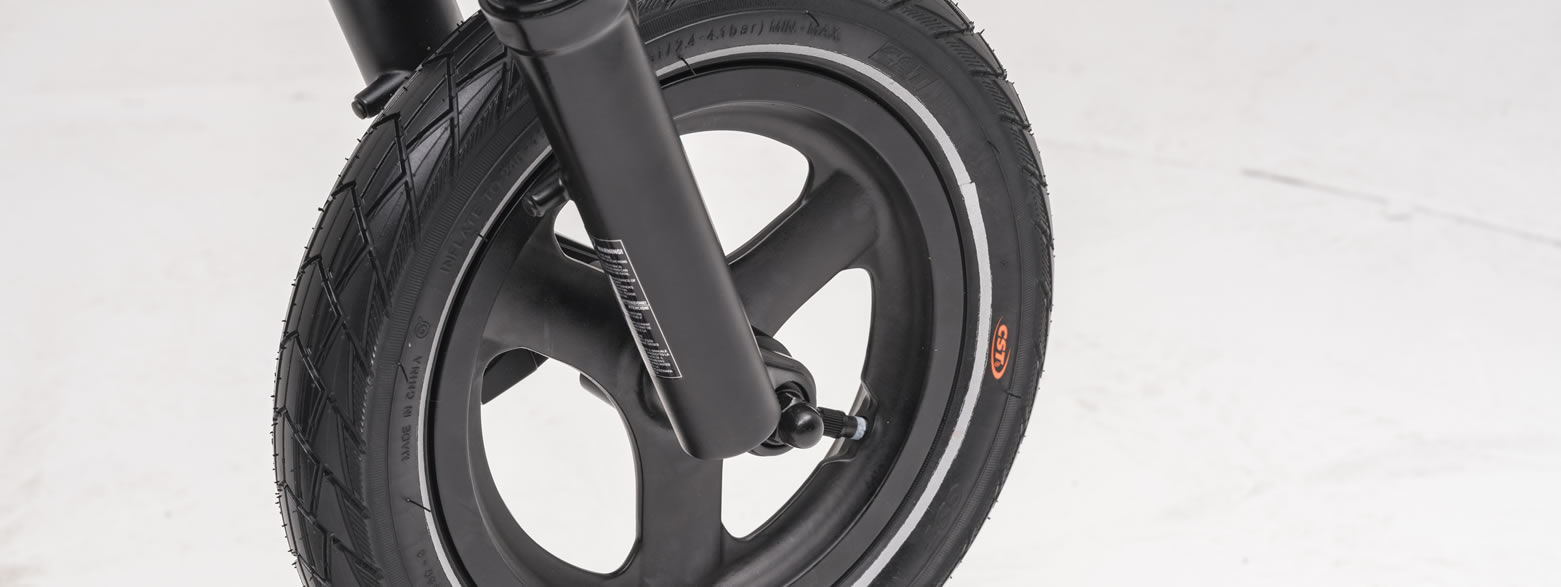

  • TIRE BRAND & SIZE

    CST 16*2.4 | CST12*2

  • TOP SPEED

    16km/h

  • MAX.RANGE

    25km/h | 15km/h

  • N.W.

    13kg/15kg | 11.5kg/13.3kg

  • VEHICLE DIMENTION

    1220*570*760mm | 1120*570*710mm

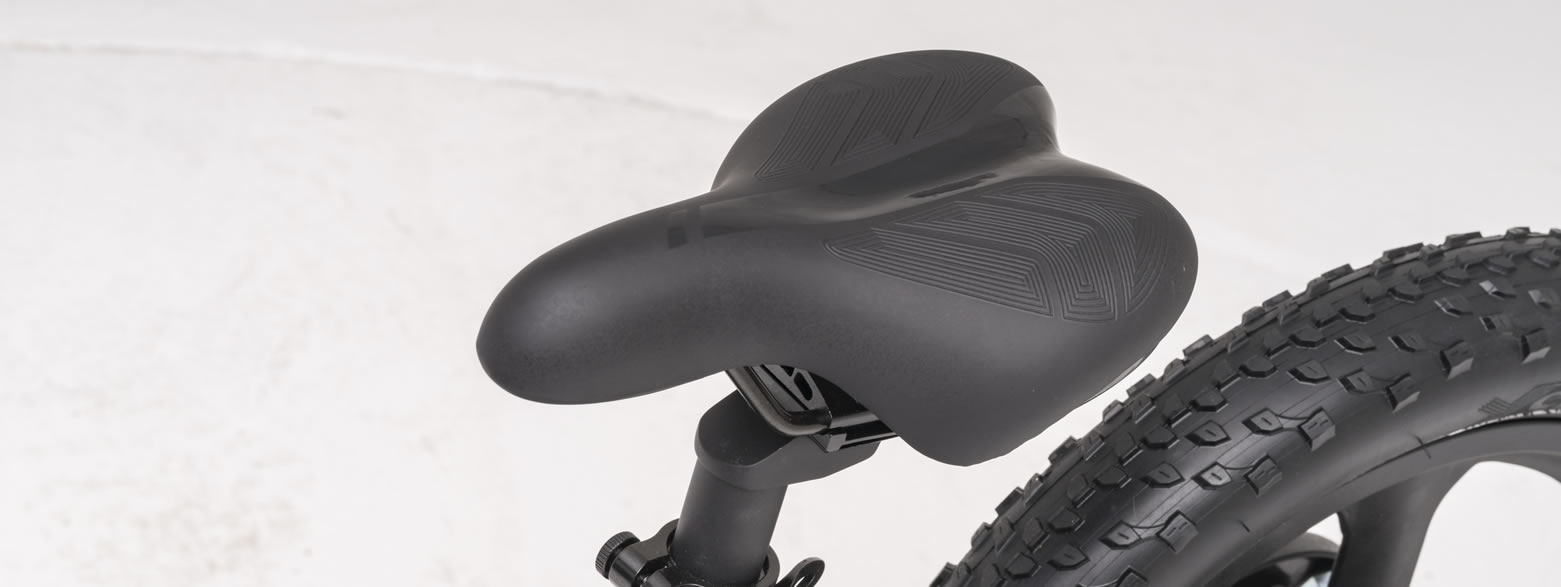

  • SEAT HEIGHT

    500～570mm(tunableness) | 450～520mm(tunableness)

  • WHEELBASE

    800mm

  • HANDLE BAR LENGTH

    /

  • MIN.GROUND CLEARANCE

    135mm | 85mm

  • MAX.LOADING ABILITY

    70KG

  • MAX.GRADEABILITY

    /

Consult usDownload tech specs

*All figures are preliminary and subject to change.
